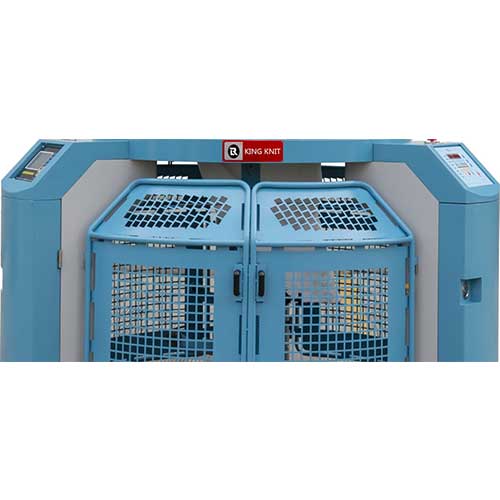

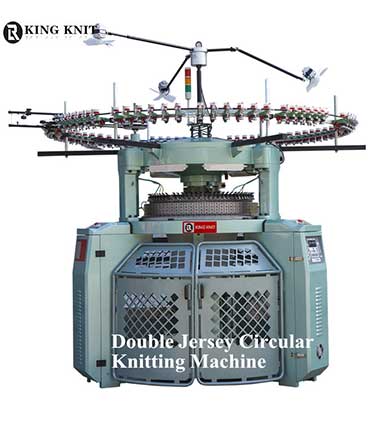

Double Jersey Circular Knitting Machine

Controlled by the computer, this series of machines can select needles and make jacquard fabrics with patterns from the USB. With pattern designing software easy to use, it also contains the three-way technique and the power-off memory function. It is easy to test and operate the machine by taking user’s operating habits into consideration.

The frame of the machine combines the knitting principle with human engineering, The outline is pretty and reliable. It dopts good cast iron, Long natural timing effect and artifical timing effect,which prevent the parts from defoming.

The series including: High speed interlock machine / RIB Knitting Machine / Double Computerized Jacquard Knitting Machine.

Product Details




Main Feature:

Brand Name: KING KNIT

Model Number: KKS-DC-X

Product Type: Double Jersey Circular Knitting Machine (without Jacquard function)

RPM: 23rpm-28rpm

Cylinder: 16''-44''

Number of Needles: 14G-32G(According customer requirement.)

Feeder: 28-92F

Power: 5.5kw

Dimension(L*W*H): 2.45m*2.18m*2.18m

Weight: 2000 kgs

Control style: Computerized knitting machine.

Packaging Details:

Usually packing ways for those single jersey knitting machines as bellow:

Bubble bag, then wooden case, into containers.
