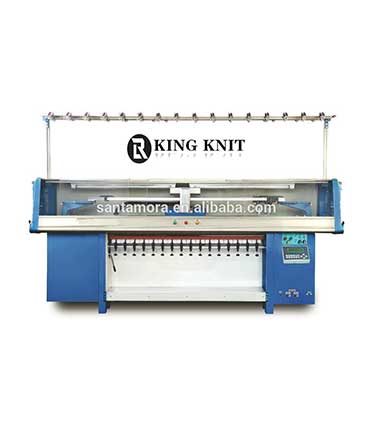

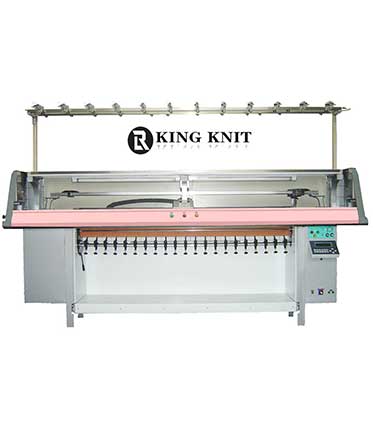

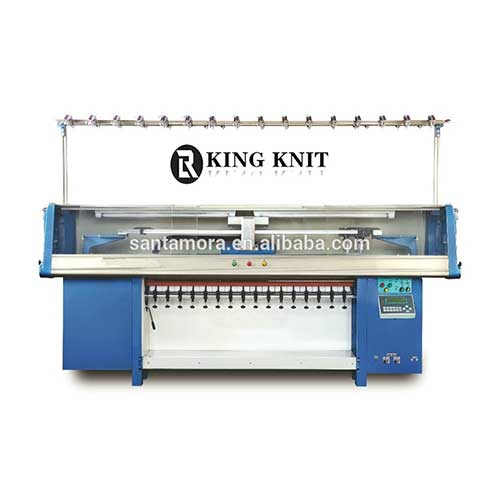

KFC-617/627/637 Full Computerized Flat Knitting Machine
KFC-617 / 627/ 637 series is a High Quality Collar / Sweaters Flat Knitting Machine with Jacquard function, can produce different jacquard patterns.
Main Feature:
Brand Name: KING KNIT
Model Number: KKJ-KFC-617/627/637
Product Type: Cuffs/Sollar/Sweater Knitting Machine
Production Capacity: 1.2m/S
Gauge: 7G-18G
Knitting width: 40",52",72",80" /60",72",80" /52",72",80"
Knitting speed:Max.1.2m/sec. Knitting speed varies according to gauge, yarn and knitting conditing
Yarn carrier: 6 yarn carriers on three double rails. /12 yarn carriers on three double rails.
Cam system: Single system.Tuck on front bed & rear bed, high butt & low butt system
Needle bed: Replace able segment needle bed
Jacquard System:Jacquard+out of action position on front bed and rear bed, jack knit and jack tuck.
Stitch density:Electronic control with stepping motor 00-99 levels.
Racking:6 levels to left or to right
Fabric take-down:Compound main roller, torque motor control, high speed & low speed adjustable
Stop motion:Yarn break, knot, needle break, shock, fabric drop out, wraparound check, piece count, motor overload etc.
Drive: Timing belt, no oil needed, programming speed
Top tensions: Electronic top tensions easy to thread the yarn through
Power: AC 220V, Single-phase 50/60Hz 1/2HP
Control system: Computer control LCD display.
Packaging Details: Packing in standard wooden case
Weight: 600-900KGS
