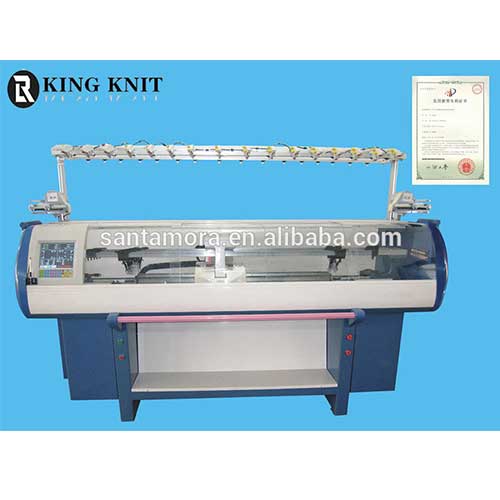

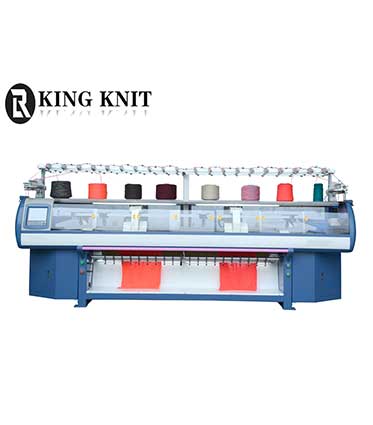

Single Carriage With Double System/ KKJ-KNJ-300
Fully fashion,full computerized flat knitting machine with jacquard function. It can produce Sweater or collar with very high efficient.
Main Feature:
Brand Name: KING KNIT
Model Number: KKJ-KNJ-300
Product Type: Sweater/collar Knitting Machine
Gauge: 2.5G,3G,3.5G,4G;5G,7G,9G,10G,12G,14G,16G, 18G and 3-5-7 multi gauge
Knitting width :48”,52”,56”,60”,66”,86”,106”(inches)
Knitting speed:Controlled by AC servo motor with 32 sections speed optional, max 1.2m/s
Knitting system:GE21:single carriage with double systems;
Knitting function:Knit, miss, tuck, transfer, pointer,intarsia,jacquard, hide,or apparent shaping and other regular irregular patterns
Racking:Controlled by servomotor racking within 2 inches and with fine adjusting function
Yarn carrier:2X8 yarn carriers on each side of 4 guide rails, shift-able on any needles position
Transfer cam:The transfer cam is compose designed, single or double cam system all can transfer,another cam system for knitting width.
Encoder:Advanced encoder adopted
Stitch density:Controlled by stepping motor,24 section stitch select-able adjustable scope supported by subdivision technology
Sinker system:Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns.
Protection:The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting ,fail of racking needles.
PC system:
1. Screen, Adopt LCD touchscreen and figure interface, input device: USB internal storage 1G, A great amount of design files can be stored at the same time and they can be fetched out for use at any time as per production requirements
2.Monitoring menu: each kind of operating parameter can be shown and they can be adjust at anytime when the machine is running, making conveniences for operations as much as possible
3.Free design system is visual and easy to under and upgrade Power:Single-phase 220V, adapt advanced CMOS technology, having memorizing function at power shock stop.
Comb device: Choose close U type compose needle hook.
Gross Weight: 600-900kg
After-sales Service Provided: Engineers available to service machinery overseas
