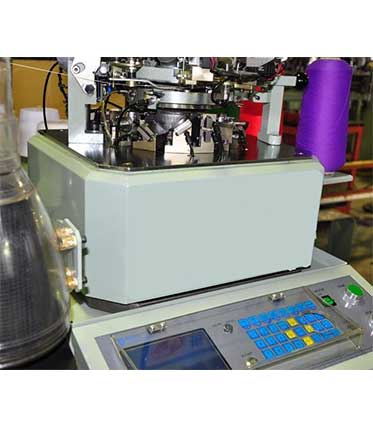

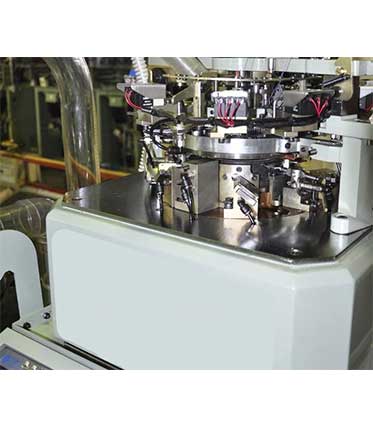

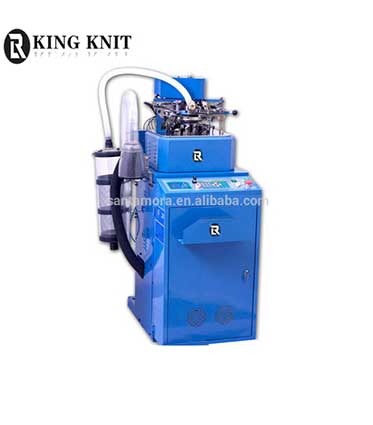

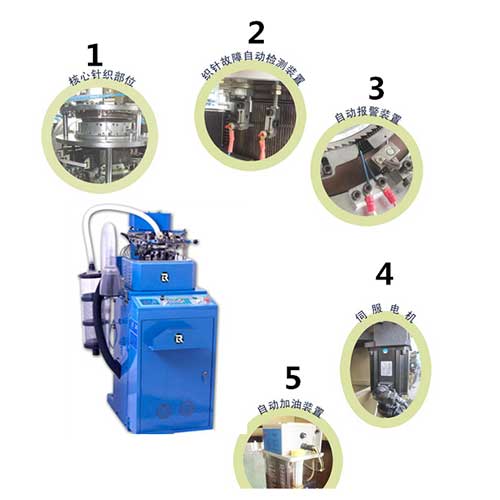

Automatic Socks Knitting Machine KKJ-S01

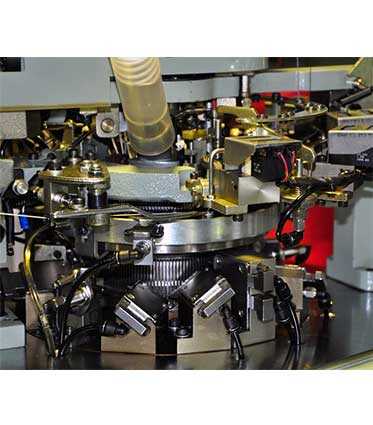

1. All material of needles system is adopted the technology of Japan, and have a good stability, wearable.

2. Drum-less, fully computer control.

3. Electra-pneumatic yarn finger and cam control.

4. Stepping motor for elastic yarn and stitch cam control.

5. The double picks, the double lift needle to beat a heel, can knit Y heel.

6. Automatic stop by a sensor when every error occurs.

7. Option of up to 2 main feeds + 5 pattern feeds (16 colour).

8. Equipped the UPS machine can keep the memory of program and the knitting action if transient electric power cut happened, when the power restored, machine can continue the knitting.

9. Knitting can be operated through keyboard and LCD.

10. The fog form of needle tube is even to provide oil, reducing fabric greasy dirt.

Product Details




Main Feature:

Brand Name: KING KNIT

Model Number: KKJ-S01 Plain/Terry

Product Type: Automatic Socks Knitting Machine

Cylinder Diameter:3 "1/2 " , 3 3/4" ,4" , 4 1/2

Needle Range:72--240N / 72--200N(Terry)

Running Speed :220-360RPM

Drive Motor:0.85KW

Fan Motor:0.75KW

Control Box:0.70KW

Floor Space in CM:150X120X240cm

NET Weight:300KGS

Gross Weight:350KGS

Packing Diamension in CM:82x108x167cm
